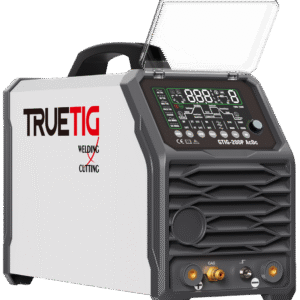

• GTIG-200P AcDc

    GTIG-200P AcDc

    • 1). 110V/220V dual voltage can be optional.Adopt High performance 32-bit MCU digital technology, and IGBT & advanced PWM inverter technology,high duty cycle, suitable for professional welding and easy to repair.
    • 2). Multi-function for precision welding,DC MMA, AC MMA, DC TIG, DC PULSE TIG, AC TIG, AC PULSE TIG, Unique MIX AC/DC TIG,MIX TIG: With heat input difference between AC and DC can get more beautiful welding seam, Arc concentration is well and can create more deep penetration. Compare with AC welding aluminum,MIX TIG can weld more thicker plate.MIX TIG can suitable more position welding and reduce electrode loss.
    • 3). With Adjustable AC balance control monitors the oxide, greatly improves cleaning during aluminum welding.
    • 4). With Adjustable AC frequency, you can change the arc’s shape, making it more or less focused.
    • 5). Easy-to-user interface, Digital set of Pre-Gas Time, Start Current, Up Slope and Down Slope Time, Finish Current Level and Post Gas Time with the choice of 2T or 4T trigger function allows controlling the start and finish of the weld process at a professional level.
    Read more

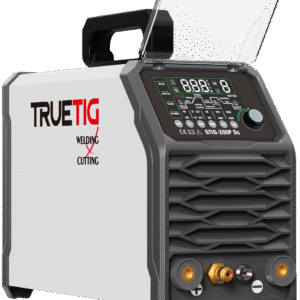

  • GTIG-200P Dc

    GTIG-200P Dc

    • 1). 110V/220V dual voltage can be optional.
    • Adopt High performance 32-bit MCU digital technology, and IGBT & advanced PWM inverter technology.
    • 2). Multi-function for precision welding,
    • DC MMA, (Pulse)DC TIG, (Pulse)Lift TIG, COLD TIG, TIG Clean, TIG Gas save smart.
    • 3). Easy-to-user interface, Digital set of Pre-Gas Time, Start Current, Up Slope and Down Slope Time, Finish Current Level and Post Gas Time with the choice of 2T or 4T trigger function allows controlling the start and finish of the weld process at a professional level.
    • 4). Digital Pulse Frequency Control gives full parameter setting of Peak Current, Base Current, Pulse Frequency and Pulse Width, allowing control of heat input into the work for penetration control and minimizing distortion, gain the ideal balance.
    • 5). Unique Gas save function, automatically control post gas more exactly.
    • 6). Cold TIG: Both Cold/Dead (Interval) Time can be adjusted, can expand more application.
    • It requires little or no heat to join two or more metals together. Weld bead is bright without deformation and discoloration.
    • 7). Clean Weld Bead: Effective finishing of stainless steel is crucial within any industry sector involved with manufacture, production, fabrication, service and repair. The TIG Brush Stainless Steel Weld Cleaning System creates a unique combination of electricity, heat and chemistry to deliver superior results in weld cleaning and metal surface finishing.
    • 8). Unique housing design with high-strength plastic All-around corner protection, innovative human engineering handle.
    • 9), 10 Channels Customized Program Store to convenient for operating.
    • 10). Excellent welding performance, special for thin plate welding.
    • 11). Good Arc-stiffness and concentrated heat; Stable Arc without spatter, good shaping and less deformation.
      12). Weld with various materials such as steel, stainless steel, titanium, cooper, nickel and their alloys.
    • 13). With Wide Voltage Function, work well and stably between voltage 150V-270V or together with Generator.
    • 14). Optional foot pedal control, Durable and smooth amperage control for expand tig welding applications.
    Read more
